Air curtains · 6 models
SWR / SER built-in air curtains
Hot-water and electric air curtains for recessed installation in false ceilings.
Power
3–18kW
Models
6
Gas
3–18 kW
01Advantages
Advantages
- Recommended mounting height 2.5 m
- Lengths of 1, 1.5 and 2 m
- Orientable air-jet grille
- Hot-water heating from 5.5 to 14 kW
- Electric heating from 3 to 18 kW
- Built-in housing thickness 198 mm
- Underside in white lacquered aluminium RAL 9016
- Accessories: control unit, two-stage thermostat, door regulator
02Description
Description
SWR is a hot-water recessed curtain with 1/2” left-hand connection.
SER is an electric recessed curtain for single-phase 230 V or three-phase 400 V supply.
The recessed housing provides a discreet solution in false ceilings.
The orientable grille helps set the air barrier precisely at the door.
03Technical characteristics
Technical characteristics
Technical characteristics
| SWR 210 | SWR 215 | SWR 220 | ||
|---|---|---|---|---|
| Thermal power | kW | 7 / 5.5 | 11 / 8 | 14 / 11 |
| Maximum / minimum air flow rate | m³/h | 1 000 / 700 | 1 600 / 1 000 | 2 000 / 1 400 |
| Water volume | l | 0.5 | 0.9 | 1.1 |
| Maximum installation height | m | 2.5 | 2.5 | 2.5 |

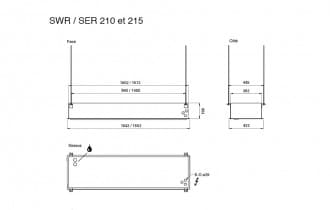

Dimensional drawing
04Applications
Applications
Entrances with false ceilingsService hallsWarehouse entrancesCommercial buildingsCorridors with frequent door opening
