Air curtains · 12 models
SW / SE hot-water and electric air curtains
Surface-mounted hot-water and electric air curtains for 2–3.5 m doors.
Power
3.3–31.2kW
Models
12
Gas
3.3–31.2 kW
01Advantages
Advantages
- Recommended mounting height from 2 to 3.5 m
- Horizontal mounting
- Lengths of 1, 1.5 and 2 m
- Carefully designed RAL 9016 housing
- Adjustable air discharge grille
- Hot-water models from 5 to 31.2 kW
- Electric models from 3.3 to 16 kW
- Integrated control and supplied remote control
02Description
Description
SW is the hot-water version for connection to a central heat source.
SE is the electric version for buildings without a water heat source.
Surface mounting above the door allows quick installation without ceiling work.
Accessories include door contact, suspended mounting brackets and hydraulic kit.
03Technical characteristics
Technical characteristics
Technical characteristics
| SW 101 | SW 151 | SW 201 | SW 103 | SW 153 | SW 203 | ||
|---|---|---|---|---|---|---|---|
| Maximum / minimum thermal power | kW | 6.9 / 5 | 11.1 / 7.8 | 14.4 / 10.5 | 14.6 / 10.6 | 24.7 / 19.2 | 31.2 / 23.7 |
| Maximum / minimum air flow rate | m³/h | 1 200 / 700 | 1 800 / 1 000 | 2 400 / 1 400 | 1 700 / 1 050 | 2 700 / 1 850 | 3 300 / 2 200 |
| Mass | kg | 17 | 26 | 35 | 26 | 36 | 48 |
| Maximum installation height | m | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 3.5 |

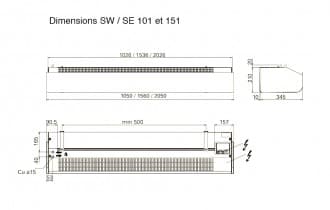

Dimensional drawing
04Applications
Applications
Retail entrancesOffice buildingsHotel receptionsRestaurantsSmaller industrial halls
