Unit heaters · 5 models
RT electric unit heaters
Electric unit heaters for smaller spaces, warehouses, garages and backup heating.
Power
5–30kW
Models
5
Gas
5–30 kW
01Advantages
Advantages
- Authorised for use in establishments open to the public
- Simple installation
- Low investment cost
- Overheating protection
- Fast start-up
- Almost no maintenance
02Description
Description
RT 5/9 has a power selector, room thermostat from 5 to 35 °C, and heating/ventilation switch.
RT 15 uses an adjustable wall panel and can optionally control up to four appliances remotely.
RT 20/30 are intended for higher air flows and have an orientable wall panel for downward or sideward direction.
03Technical characteristics
Technical characteristics
Technical characteristics
| RT 5 | RT 9 | RT 15 | RT 20 | RT 30 | ||
|---|---|---|---|---|---|---|
| Maximum thermal power | kW | 5 | 9 | 15 | 20 | 30 |
| Minimum thermal power | kW | 2.5 | 4.5 | 7.5 | 10 | 10 |
| Air flow rate | m³/h | 480 | 720 | 1 300 | 2 600 / 1 900 | 2 600 / 1 900 |
| Sound level | dB A | 40 | 44 | 47 | 60 / 52 | 60 / 52 |
| Mass | kg | 7 | 10 | 22 | 27 | 31 |

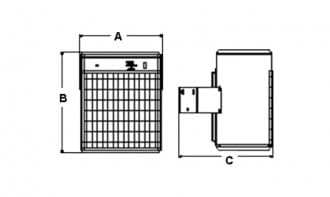

Dimensional drawing
04Applications
Applications
Small warehousesStoresGaragesStorage zonesWorkshops
05Technical documents
Technical documents
Technical documentation
