SolarHP high-efficiency radiant tubes

Radiant tubes with 68 % radiant efficiency, ErP-compliant, savings of up to 30 % in retrofits.

Power
10.5–48kW
Models
10
Gas
G20 / G25 / G31
SolarHP high-efficiency radiant tubes
10.5–48 kW
G20 · G25 · G31
01Advantages

Advantages

  • A new performance standard: 68 % radiant efficiency
  • Compliance with the ErP (Eco Design) directive
  • Refined appearance
  • Quiet operation
  • Straightforward installation
  • 23 % lower heat input
  • Lower flue temperature
  • New safety housing for flame monitoring
  • Gas savings of at least 15 % compared with standard appliances; up to 30 % in retrofits
02Description

Description

7 U-shaped models (10.5 to 48 kW) plus 3 linear models (20 to 48 kW), with 1 or 2 operating speeds.

Available for natural gas (G20/G25) or propane (G31). Dual gas solenoid for safety.

Radiant tubes in annealed aluminised steel with high emissivity. Cast-iron supports for the burner and exhaust fan. Aluminised-steel reflectors with optimised geometry.

Options: 2 speeds, return run.

03Technical characteristics

Technical characteristics

Technical characteristics

SolarHP 12SolarHP 17SolarHP 23SolarHP 32SolarHP 36SolarHP 43SolarHP 48
Heat input (2nd speed)kW10.5152027324048
Heat input (1st speed)kW811.515.521.525.53238
Combustion efficiency%93939192919292
Radiant efficiency%57666568676565
G20 flowm³/h1.111.592.122.863.394.235.08

Recommended mounting height

SolarHP 12SolarHP 17SolarHP 23SolarHP 32SolarHP 36SolarHP 43SolarHP 48
Min. heightm5566789
Max. heightm781011121416

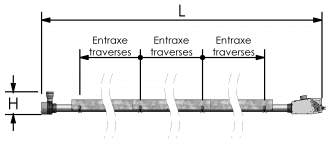

Dimensional drawing
Dimensional drawing SolarHP high-efficiency radiant tubes
04Applications

Applications

Industrial facilitiesProduction hallsCar service workshopsSports and recreation centresExhibition halls and arenasWarehouses
05References

References

SolarHP high-efficiency radiant tubes is installed in the following facilities worldwide:

  • Renault
  • ArcelorMittal
  • Bombardier
  • STORK
  • Coca-Cola
06Technical documents

Technical documents
