Energy recovery · 3 models
CA cased destratification fan
Cased fan for recovering warm ceiling air and returning heat into the occupied zone.
Power
3800–10800m³/h
Models
3
Gas
3800–10800 m³/h
01Advantages
Advantages
- Air suction from above and blowing downward
- Sheet-metal casing RAL 9003 with four fixing points
- Aluminium fan mounted directly on the motor shaft
- Integrated destratification thermostat
- Adjustable fin diffusers in natural anodised aluminium
- Wire guard motor and fan protection
- Eligible for Energy Savings Certificate (EEC)
02Description
Description
The CA fan returns warm air from below the ceiling back into the occupied zone and reduces temperature gradient.
It is useful as an add-on to warm-air systems where heat otherwise remains in the upper layers of the space.
The integrated thermostat enables automatic operation based on air stratification.
03Technical characteristics
Technical characteristics
Technical characteristics
| CA 40 | CA 60 | CA 100 | ||
|---|---|---|---|---|
| Air flow rate | m³/h | 3 800 | 5 800 | 10 800 |
| Maximum fixing height | m | 4 do 6 | 6 do 10 | 6 do 12 |
| Rotation speed | tr/min | 1 300 | 1 100 | 1 300 |
| Number of fans | 1 | 1 | 2 | |
| Power | VA | 320 | 350 | 700 |
| Sound level at 4 m | dB A | 41 | 48 | 51 |

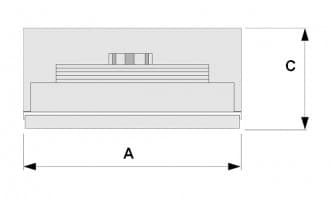

Dimensional drawing
04Applications
Applications
Industrial hallsLogistics centresExhibition hallsGymnasiumsWarehouses
